New Arrival : MasterPhono Phonostage

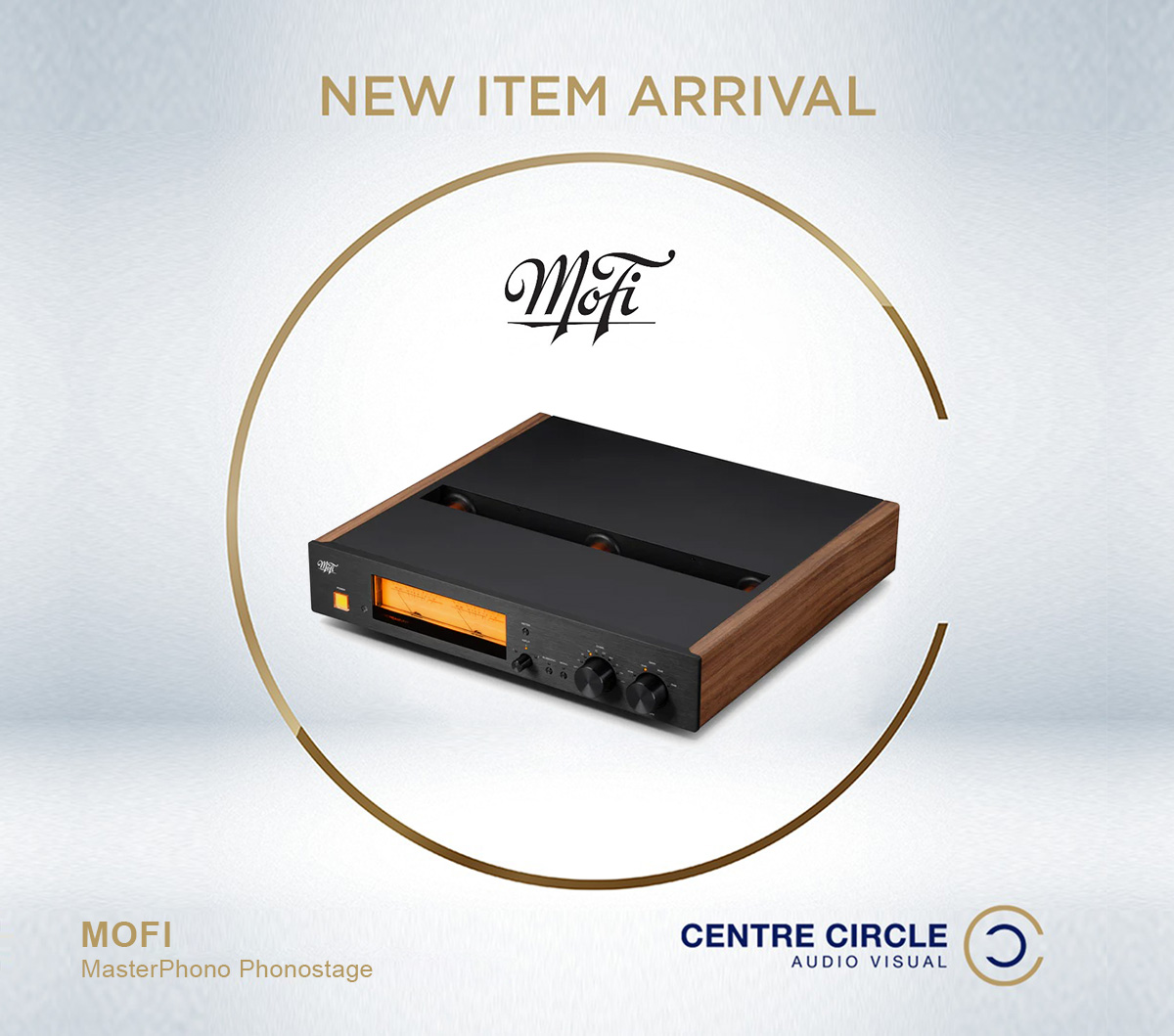

MasterPhono Phonostage

Created in collaboration with the revered audio engineer Peter Madnick, renowned for his exceptional contributions to the high-performance audio industry, the all-analog MasterPhono preamplifier is a testament to his expertise. The mission behind the MasterPhono was unequivocal: to replicate the sonic integrity that characterizes the renowned MFSL vinyl reissues. Over a year of meticulous research, development, and prototyping was invested to meet this lofty goal.

Features:

  • RCA/XLR: Voltage & Current inputs, Trans-impedance dynamic loading
  • Dual-chassis: Power/Signal isolation, low noise, separate grounding
  • Gain settings: 40/50/60/70dB, Impedance: 10 settings + Custom
  • Fully discrete balanced circuitry, servo-controlled, DC-coupled, high pass filter
  • Passive RIAA: Precise parts, NOS capacitors, accurate resistors
  • Cascaded voltage regulation, ultra-low noise
  • Remote controlled: Input, gain, mute, mono, meter, subsonic filter
  • Dual Function VU meters for monitoring or cartridge calibration

Product Specifications

GainSelectable gain for MM or MC 40db, 50db, 60db, 70db
THD10mV@1KHZ MM low: 0.005% A-Weighted
10mV@1KHZ MM high: 0.005% A-Weighted
1mV@1KHZ MC low: 0.010% A-Weighted
1mV@1KHZ MC high: 0.013% A-Weighted
Loading15 Ohms, 30 Ohms, 50 Ohms, 75 Ohms, 100 Ohms, 500 Ohms, 1K Ohms, 10K Ohms, 47K Ohms+150pF, & "Custom"
Max Output@1% THD, 10 Volts RMS
RIAA Accuracy-+/- 0.05db
Frequency Response10Hz–50KHz ±0.20dB
Signal To Noise Ratio93dB (MM), 85dB (MC)
Dimensions (WxHxD)17" x 3.5" x 15.75"
(43.2 x 8.9 x 40 cm)
Weight15 lb / 6.8 kg
WarrantyFive years parts & labor
