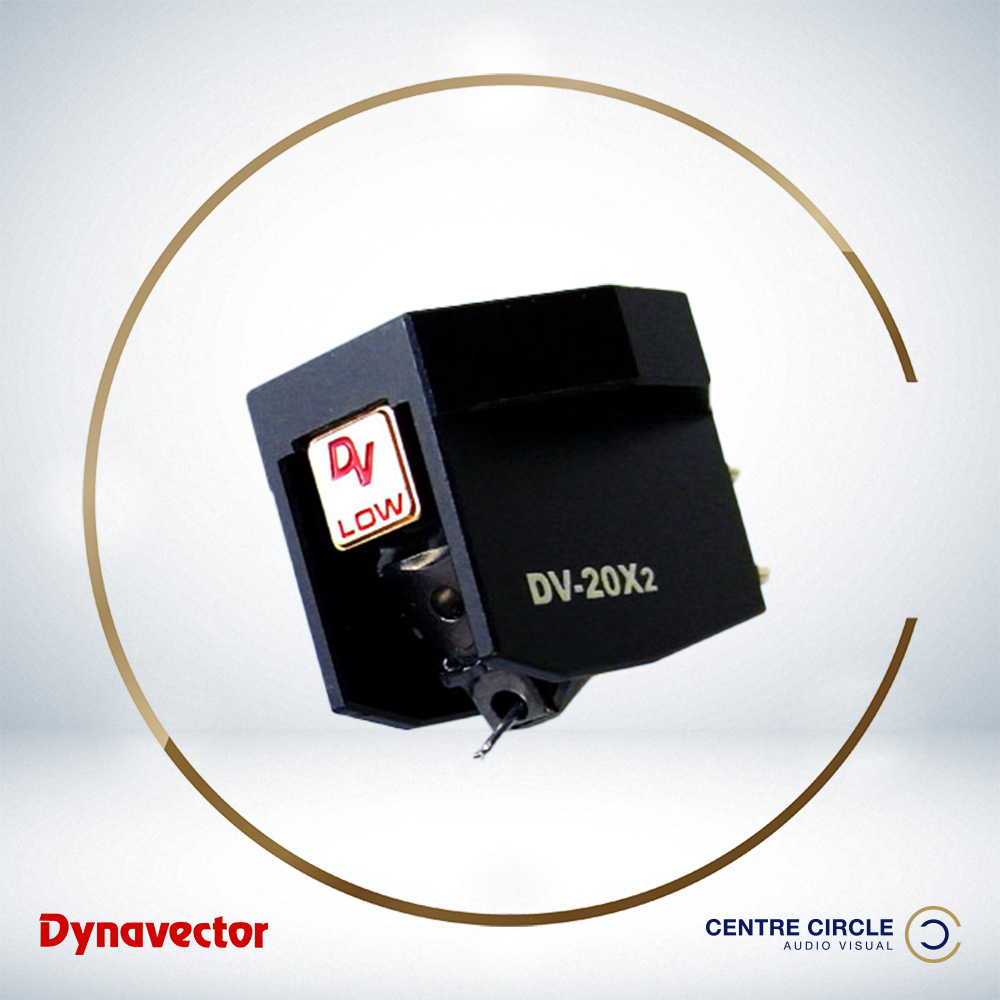

DV 20X2 H/L
High/Low Output with Hard Aluminium Cantilever
For more than 35 years Dynavector have established an enviable reputation for producing affordable high quality moving coil cartridges. Notably high output models that are designed to work with MM inputs negating the necessity for equipment change or the use of setup devices required for low output cartridges. The outstanding performance of the Dynavector high output moving coil cartridges can be attributed to the exclusively Dynavector designed coil winding machine capable of utilizing extremely fine coil wire providing a high output to mass ratio.
Product Specifications
| Type | High/Low output moving coil cartridge with flux damper and softened magnetism |
| Output Voltage | 2.8mV / 0.3mV (at 1KHz, 5cm/sec.) |
| Channel Separation | 25 dB (at 1KHz) |
| Channel balance | 1.0 dB (at 1KHz) |
| Frequency response | 20 - 20,000Hz (± 1dB) |
| Compliance | 12 mm/N |
| Tracking force | 1.8 - 2.2 g |
| Impedance | 150 ohms / 5 ohms |
| Recommended load impedance | > 1,000 ohms / > 30 ohms |
| Cantilever | 6mm length, hard aluminium pipe |
| Stylus tip | Micro Ridge Nude diamond |
| Weight | 9.2 g |
C.E.S award winner / 40 Years of Innovation / Made in Japan / MC Cartridge / Tonearms
Dynavector is highly regarded as a manufacturer of the finest high-performance moving coil phono cartridges and award winning tonearms.
With 40 years of continuous development, Dynavector had continuously improve the legendary Dr.Tominari’s cartrdige design.
Meanwhile, Dynavector’s DV507 mkII is a unique bi-axial tonearm based on technically advanced theories and unique production technologies – truely one of its own, and 3 times C.E.S award winner.
