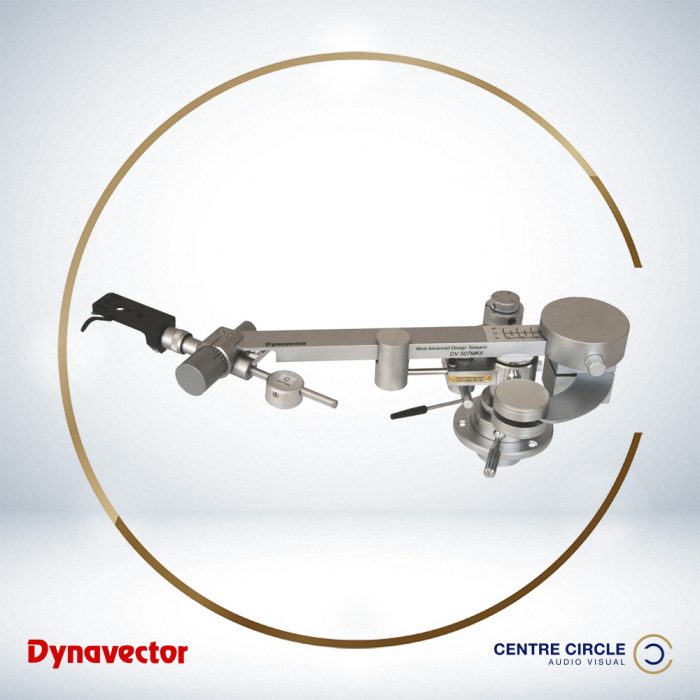

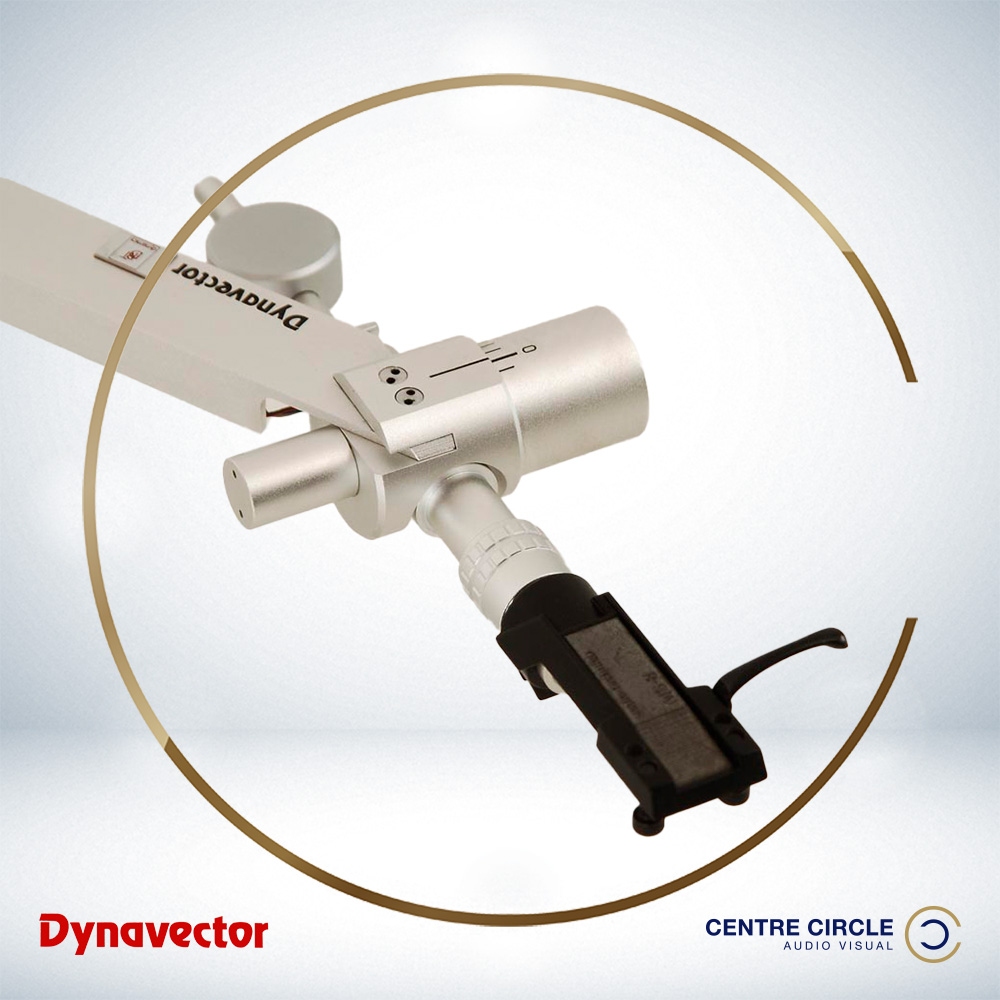

DV 507 MKII Tone Arm
The Long-Awaited Debut of DV 507MKII Tonearm
The new MKII version of the Dynavector DV 507 tonearm has made its long-awaited debut, building on the strengths of the original DV 507 which has enjoyed the highest reputation among audiophiles world-wide since its appearance in 1984.
As it is a bi-axis inertia controlled tonearm the DV 507, no matter the type of cartridge can trace the music signal grooves cut in the recording with extreme accuracy. The DV 507 also provides superb trackability on warped recordings. Resolution and musical detailing are quite remarkable.
Product Specifications
| Type | Bi-Axis inertia controlled Dynamic and Eddy Current Damping Dynamic Balance type tone arm |
| Overall length | 306mm. With head shell: max 326 mm |
| Effective length | 241mm (i.e. tonearm pivot point to cartridge stylus point) |
| Overhang | 15mm |
| Offset angle | 21.5 degree |
| Height | 59mm lifts up to 92mm |
| Height adjustment range | 39mm-72mm at sub arm center |
| Depth | 36mm without connecting cable |
| Optimum cartridge weight | 15-35 g, including headshell |
| Horizontal tracking angle error | -1.1 degree - +2.2 degree , 0 degree at inner band of record, 2.2 degree at outside |
| Tracking force adjustment range | 0-38 g by 0.2 g step |
| Sensitivity | Horizontal:less than 50 mgrams, Vertical:less than 40 mgrams |
| Net weight | 1,380 g |
| Output connection | 5P connector |
| Headshell connection | EIA standards 4 Pin connector |
| Accessary |
low resistance (0.046 ohms/m, 54pF/m) high quality arm cable, milled aluminium headshell weight 15.4 g. mounting template for the arm overhang guage for the headshell |
C.E.S award winner / 40 Years of Innovation / Made in Japan / MC Cartridge / Tonearms
Dynavector is highly regarded as a manufacturer of the finest high-performance moving coil phono cartridges and award winning tonearms.
With 40 years of continuous development, Dynavector had continuously improve the legendary Dr.Tominari’s cartrdige design.
Meanwhile, Dynavector’s DV507 mkII is a unique bi-axial tonearm based on technically advanced theories and unique production technologies – truely one of its own, and 3 times C.E.S award winner.
