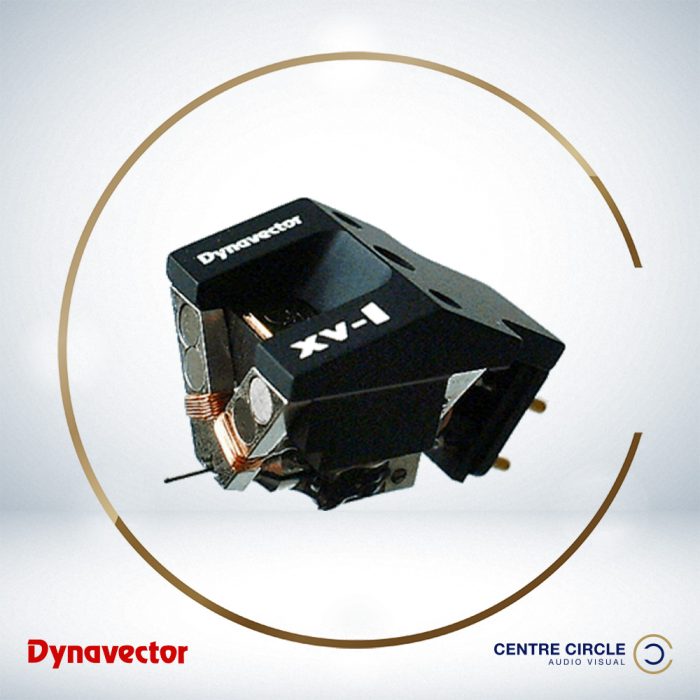

DV DRT XV-1s
The original XV-1 cartridge was designed to take the reproduction of analogue recording to new heights. The XV-1 achieved a standard of performance that was clearly in a league of its own. Dynavector have always remained indifferent to the endless digital formats that proport to be the next breakthrough in music reproduction, safe in the knowledge that the vast heritage of music recorded on vinyl can easily equal, if not clearly out perform these new formats. Dynavector are seriously committed to ensure the vinyl enthusiast is well catered for and the XV-1s is further proof of this on going commitment; yet another ground breaking product, uniquely Dynavector and flagship of the brilliant Dynavector cartridge range.
Golden Ear Award 2001 of MC Cartridge
At a glance, the XV-1 was always different from all cartridges that have gone before. Its magnetic circuit comprises 8 small ALNICO magnets. The magnetic path is divided into two – In the magnetic gap, a specially designed magnetic flux equalizing piece is placed. On the front yokes, magnetic stabilizing coils are wound. By this special combination, the magnetic field becomes widely homogeneous and more linear than the conventional magnetic design that is common in existing MC cartridges.
The XV-1 has been awarded ‘Golden Ear Award 2001’ in the Absolute Sound magazine for its highly advanced technology.
Product Specifications
| Type | Low output moving coil cartridge with multi Alnico magnets and the Flux damper |
| Output Voltage | 0.3mV (at 1KHz, 5cm/sec.) |
| Channel Separation | 30 dB (at 1KHz) |
| Channel balance | 1.0 dB (at 1KHz) |
| Frequency response | 20 - 20,000Hz (± 1dB) |
| Compliance | 10 mm/N |
| Tracking force | 1.8 - 2.2 g |
| Impedance | R=6 ohms, L=18 micro Henry |
| Recommended load impedance | > 30 ohms |
| Cantilever | 6mm length 0.3 mm dia. solid boron with a special armaturer |
| Stylus tip | PF Line contact shape, stylus radius: 7 x 30 micron |
| Weight | 12.6 g |
C.E.S award winner / 40 Years of Innovation / Made in Japan / MC Cartridge / Tonearms
Dynavector is highly regarded as a manufacturer of the finest high-performance moving coil phono cartridges and award winning tonearms.
With 40 years of continuous development, Dynavector had continuously improve the legendary Dr.Tominari’s cartrdige design.
Meanwhile, Dynavector’s DV507 mkII is a unique bi-axial tonearm based on technically advanced theories and unique production technologies – truely one of its own, and 3 times C.E.S award winner.
