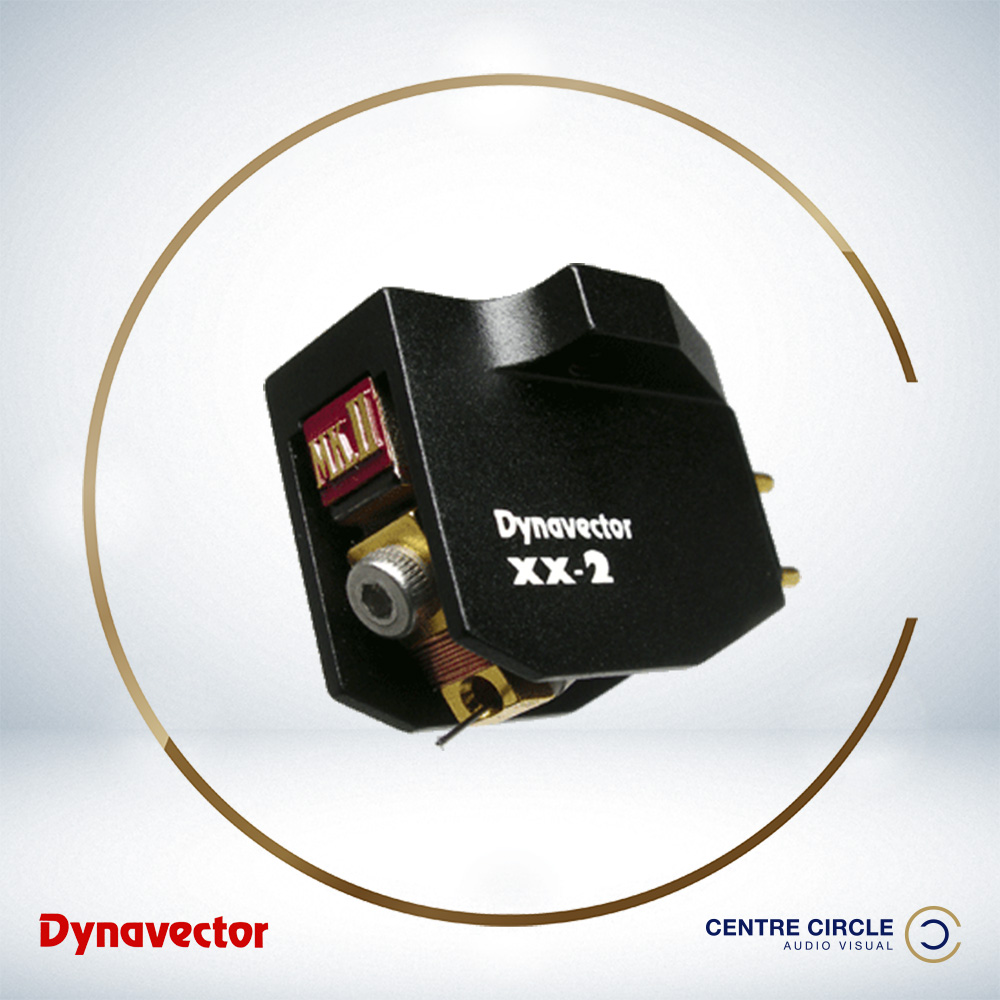

DV XX2 MKII
Low output MC with Flux damper and Alnico magnet
The DV XX-1 was the first cartridge to feature a “magnetic flux damper” (patent) and softened magnetism” (patent) processes that reject the magnetic fluctuation that is detrimental to a moving coil cartridges performance.
The The DV XX-2 MKII retains the benefit of the flux damper but features the Alnico-5 magnet and the similar rigid construction to the Te Kaitora Rua. Alnico magnets exhibit high magnetic flux density combining with a low coercive therefore magnetic resistance is lower than other magnetic types such as rare earth and ferrite, providing the exceptional stability of the XX-2 MKII output voltage. There is also the additional advantage of low magnetic and electrical resistance contributing to a discernable improvement in sound quality.
The XX-2MKII also exhibits deep powerful bass, treble is both clear and lively possessing none of the hardness found in many moving coil designs.
Product Specifications
| Type | Low output moving coil cartridge with Alnico magnet and Flux damper |
| Output Voltage | 0.28mV (at 1KHz, 5cm/sec.) |
| Channel Separation | 30 dB (at 1KHz) |
| Channel balance | 1.0 dB (at 1KHz) |
| Frequency response | 20 - 20,000Hz (± 1dB) |
| Compliance | 10 mm/N |
| Tracking force | 1.8 - 2.2 g |
| Impedance | 6 ohms |
| Recommended load impedance | > 30 ohms |
| Cantilever | 6mm length 0.3 mm dia. solid boron |
| Stylus tip | PF Line contact shape, stylus radius: 7 x 30 micron |
| Weight | 8.9 g |
C.E.S award winner / 40 Years of Innovation / Made in Japan / MC Cartridge / Tonearms
Dynavector is highly regarded as a manufacturer of the finest high-performance moving coil phono cartridges and award winning tonearms.
With 40 years of continuous development, Dynavector had continuously improve the legendary Dr.Tominari’s cartrdige design.
Meanwhile, Dynavector’s DV507 mkII is a unique bi-axial tonearm based on technically advanced theories and unique production technologies – truely one of its own, and 3 times C.E.S award winner.
