Ithaka Minor DAC
The Ianus Series Ithaka Minor Digital to Audio Converter mates our Triode Fet gain stage and completely redefines the status of digital replay.
The Ianus Series Ithaka Digital to Audio Converters mates with our Triode Fet gain stage and completely redefines the status of digital replay. The Ithaka minor is our newest design in this direction. Originally, Ithaka d/a converter technology was created at the same time we developed the new generation of our TriodeFet technology (new Gen developed as showcased in our QuintEssence amplifiers). Our top line-level technology, the Inverted Triode, is already used in our flagship converter, the Homerus. However, mating one of our top digital banks to our current top med-high power technology, the TriodeFet, was an idea that was on paper but not on our immediate plans. However, some experimental prototypes quickly convinced us that this new technology has to be made available.
Technical Specifications
DIGITAL SECTION

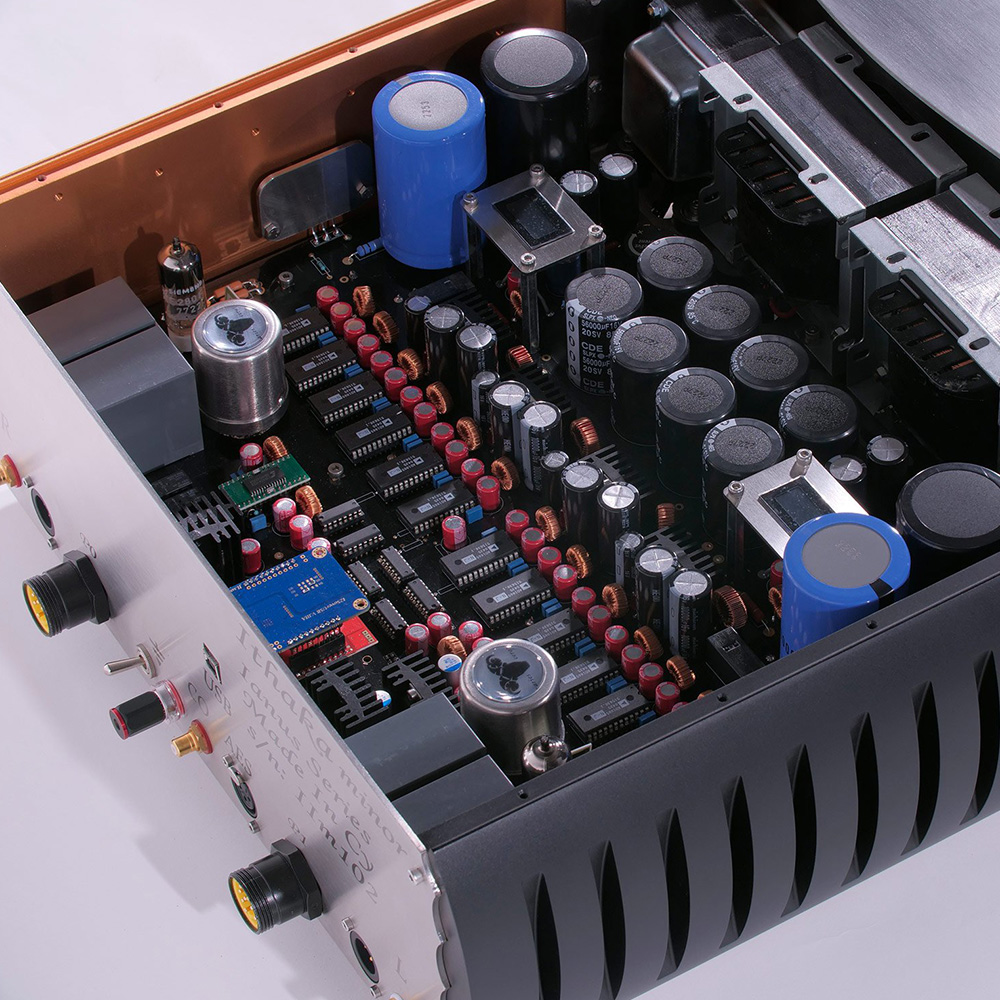

| IC Chip Array: | 12 R2R converters per channel, single ended current output using the top grade Analogue Devices AD1865 with 12 parallel converters per bank, 12 per channel, 24 in total |
| Current to Voltage Conversion: | Transformer I/V conversion with custom wideband transformers, balanced current to single ended voltage conversion. |
| Additional Clock: | Internal Super-Clock by-passable on the fly, triple regulated supply, quad-stage pre-filters |
| Regulators: | Eight discrete ultra-low-noise regulators for the 4 converter banks,quad-stage pre-filters |
POWER SUPPLY SECTION
| PSU: | Massively over engineered power supplies, power input filters |
| PSU filering: | Extensive local decoupling using tuned LC filters |

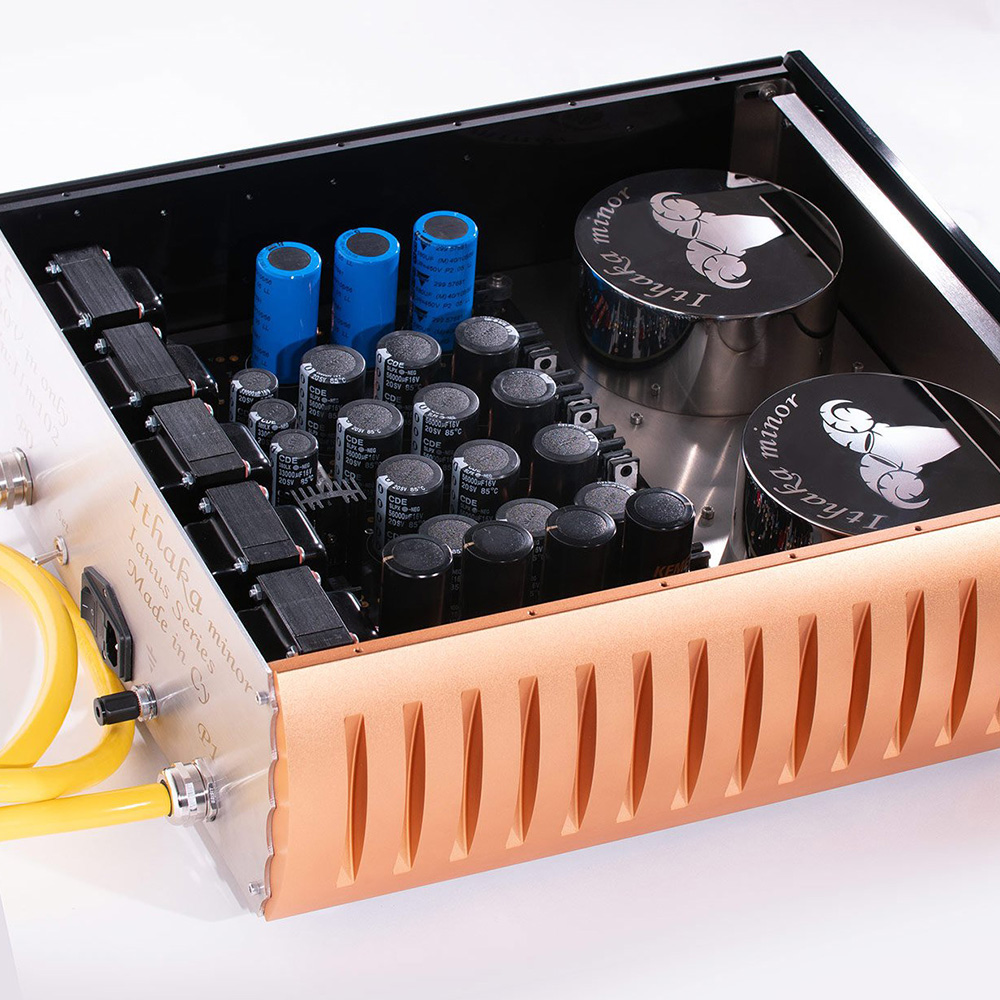

| Mains Transfomers: | 2 Low noise 400VA torroidal transformers, over 1 Farad total system capacitance, wideband local decoupling |
| Pseudo-battery system: | Four independent Pseudo-battery systems for isolating all analog and digital stages from the power grid, Triple-stage pre-filters |
| TriodeFet PSU: | Triple choke-filtered, veru high current capacitor supplies |
INPUT & OUTPUT SECTION
| Gain Stage: | First Generation TriodeFet output stage, Single-Stage, Single Ended circuit. 0.5A idle current Class A operation. |
| Output Range: | RCA: 30Vpp output @ 0db 10Vrms ( optional 4V output on demand) |
| User Selectable Output Tuning: | User can pre-load the output stage using external resistive modules, to fine-tune the sound. |
| Output: | 2 x RCA, 2 x Balanced. True Balanced output standard. Floating RCA output switchable (ground loop resolver). |
| Output Impedance: | 1 ohm (balanced and SE output). |
| USB input: | Data rates up to 24/384KHz |
| Other inputs: | AES/EBU, S/PDIF, BNC as option |
| Jitter attenuation: | Down to femtosec level |

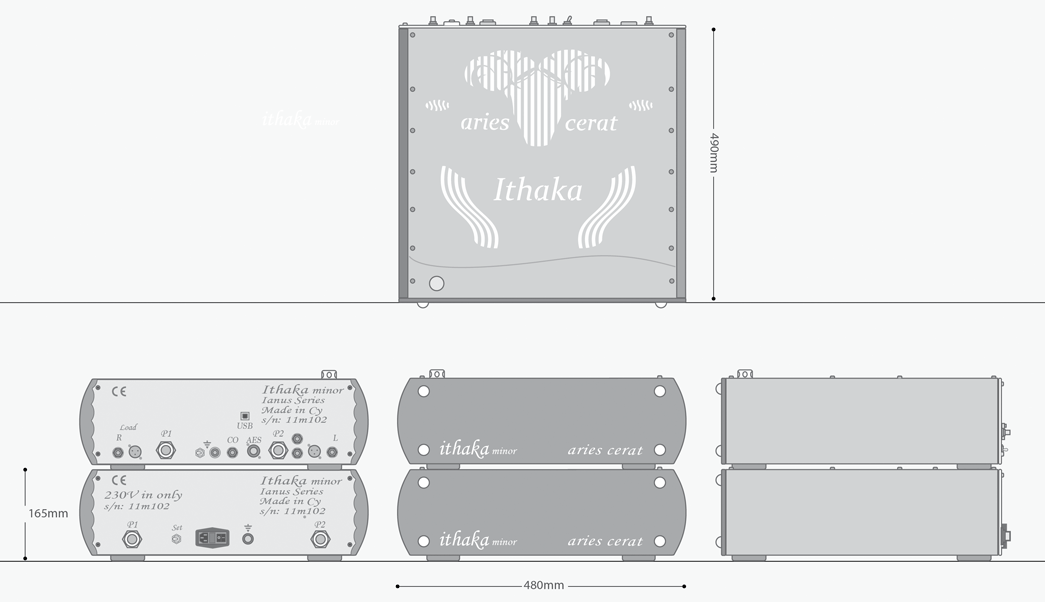

| Dimensions: | 480mm W x 490mm D x 165mm H |
| Weight: | 140kg total unpacked |
