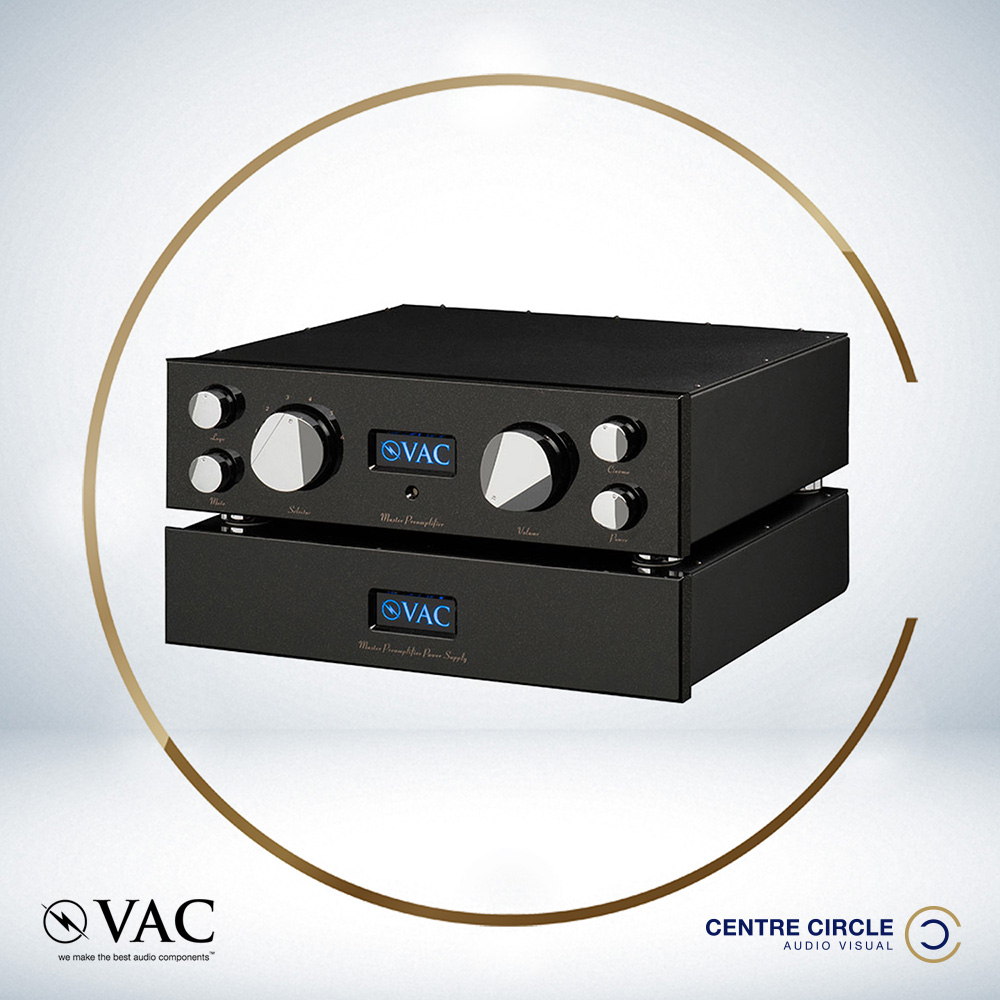

Master Line Stage
Preamplifier
The design of the all-new VAC Master Preamplifier takes the essential developments from the cost-no-object Statement pre-amplifiers and presents them in their most elemental, effective forms. If the Statement products might be likened to Formula 1 racecars, the Master Preamplifier is the derivative ultra performance road-going sports car.
Technical Specifications
| Gain | 11 dB |
| Inputs |
|
| Outputs |
|
| Tubes | 2x 8416, 7308, 6922, E88CC, ECC88, 6DJ8, (or 12DJ8 twin triodes) |
| Absolute Phase | correct from all inputs to all outputs |
| Frequency Response | Flat over audio band –3 dB bandwidth 5 Hz – 210 kHz |
| THD | <0.009% @ 1 kHz, 1 V RMS |
| Maximum Output | < 8 V RMS |
| Output Impedance | < 150 ohms, 20 Hz - 20 kHz, static (i.e., not dependent upon feedback) |
| Maximum Input | Infinite signal (attenuation precedes the gain circuitry) |
| Recommended Output Load | > 300 ohms |
| Power |
|
| Cinema Bypass | Yes |
| Voltage | May be factory configured for operation at 100, 120, 220, or 230/240 volts |
| Remote Control | included |
| Illumination | Illuminated logo may be switched off |
| Finish |
|
| Warranty | Two years parts and labor, excluding tubes (USA, see manual for full details) |
| Dimensions (H x W x D) |
|
| Shipping Weight | With phono: 75 lbs. (27.7 kg.) |
Optional Phono Stage Technical Specifications
|
Tubes |
6x 12AX7 |
|
Gain |
44 dB MM 68 dB MC |
|
Frequency Response |
RIAA standard +/- 0.2 dB (20 Hz - 20 kHz) -3 dB bandwidth 10 Hz - • 80 kHz |
|
Channel Separation |
> 80 dB @ 1 kHz |
|
Maximum Input |
> 130 mv @ 1 kHz, MM > 13 mv, MC |
|
MC Load Impedance |
selectable, 470, 300, 250, 200, 150, and 100 ohms |
|
MM Load Impedance |
selectable, 47k, 30k, 25k, 15k, and 10k ohms |
|
Overload |
117MV @ 1kHz = 8 volts RMS output; 460MV @ 10kHz |
|
Residual Noise |
Less than 3MV at output (s/n ratio greater than approx. 69db) |
Hi-end Audio / Patented iQ technology / Valve Amplifiers / Made in U.S.A
VAC was founded in 1990 by Kevin Hayes and his father, Channing W. Hayes in Sarasota, Florida. With their specialty on valve amplifier design, VAC makes their first major leap – awarded as the OEM manufacturer to produce some of the classics valve amps: Marantz Model 7 / 7C, Model 8B, Model 9. After the foundation on OEM on Marantz valve amplifier, VAC returned to design and produce quality valve amplifier.
