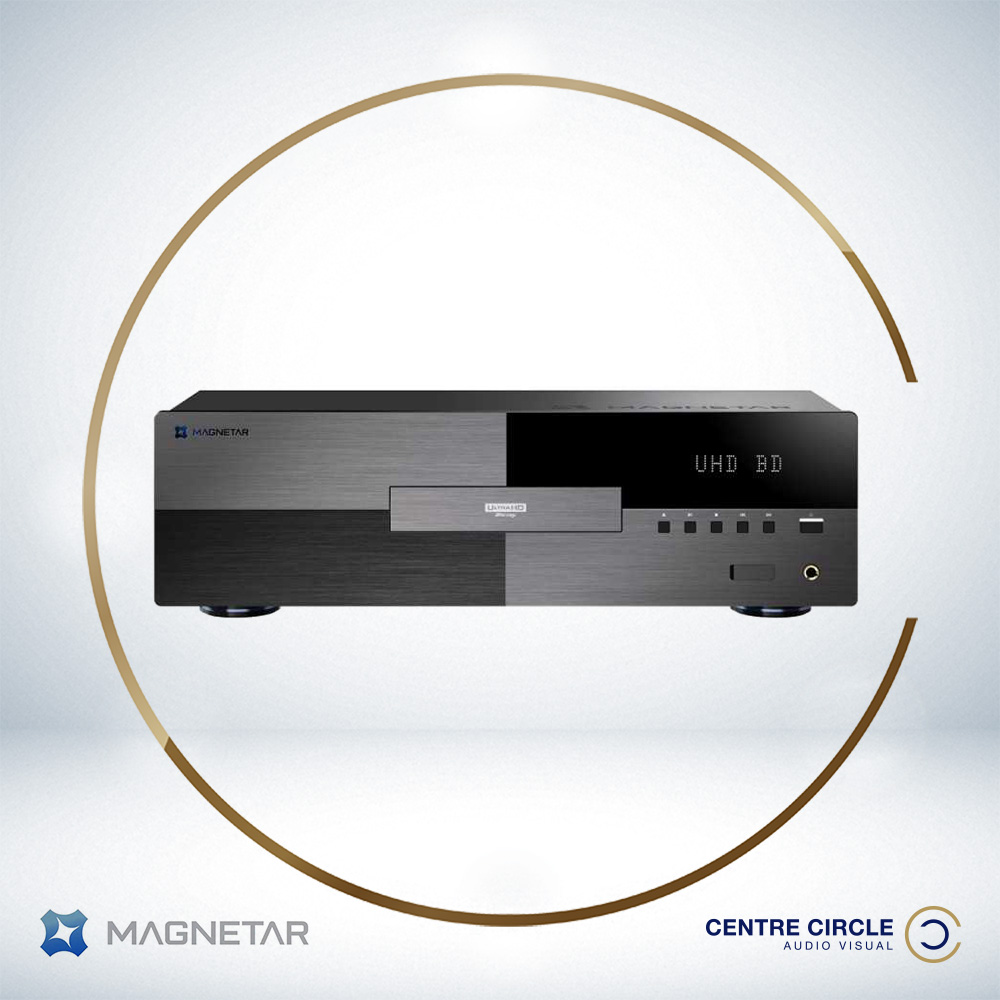

UDP900 4K Player

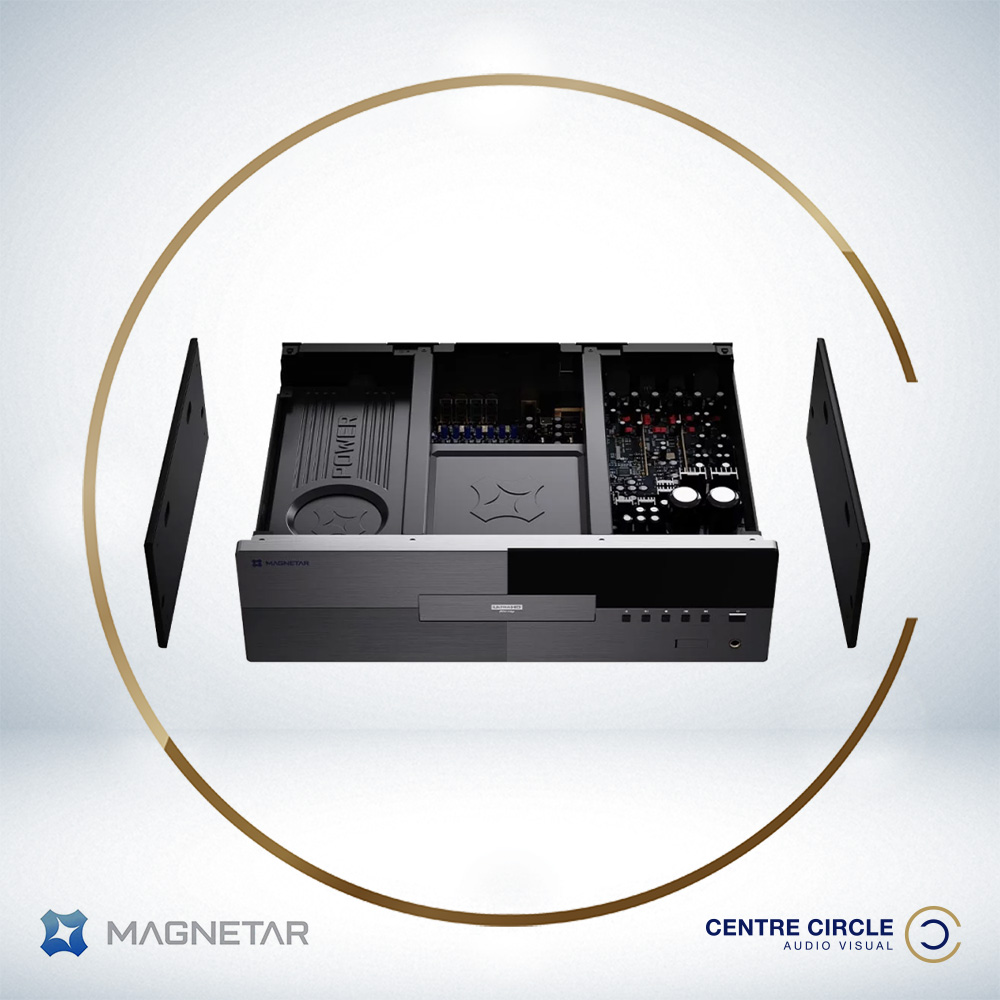

The latest designed 6-layer gold immersion main PCB circuit adopts high-precision, ultra-low noise TCXO temperature compensated crystal oscillator doubling the high precision LDO power supply processing on the UDP800. Murata multilayer ceramic capacitor TDK magnetic devices and 30 NCC electrolytic capacitors further improves audio and video quality.Both audio boards use 4-layer PCB circuit boards, each channel is designed with independent wiring,equipped with high precision, ultra-low phase noise TCXO temperature compensated crystal, oscillator, numerous ELNA, NCC audio capacitors pairing with Red WIMA, ELNA SILMIC II capacitors, and independent high-power linear power supply module equipped wot Hi-Fi XLR balanced terminals and gold plated RCA outputs providing for better Audiophile sound quality.
Product Specifications
Disc type
- UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD，SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE
Output

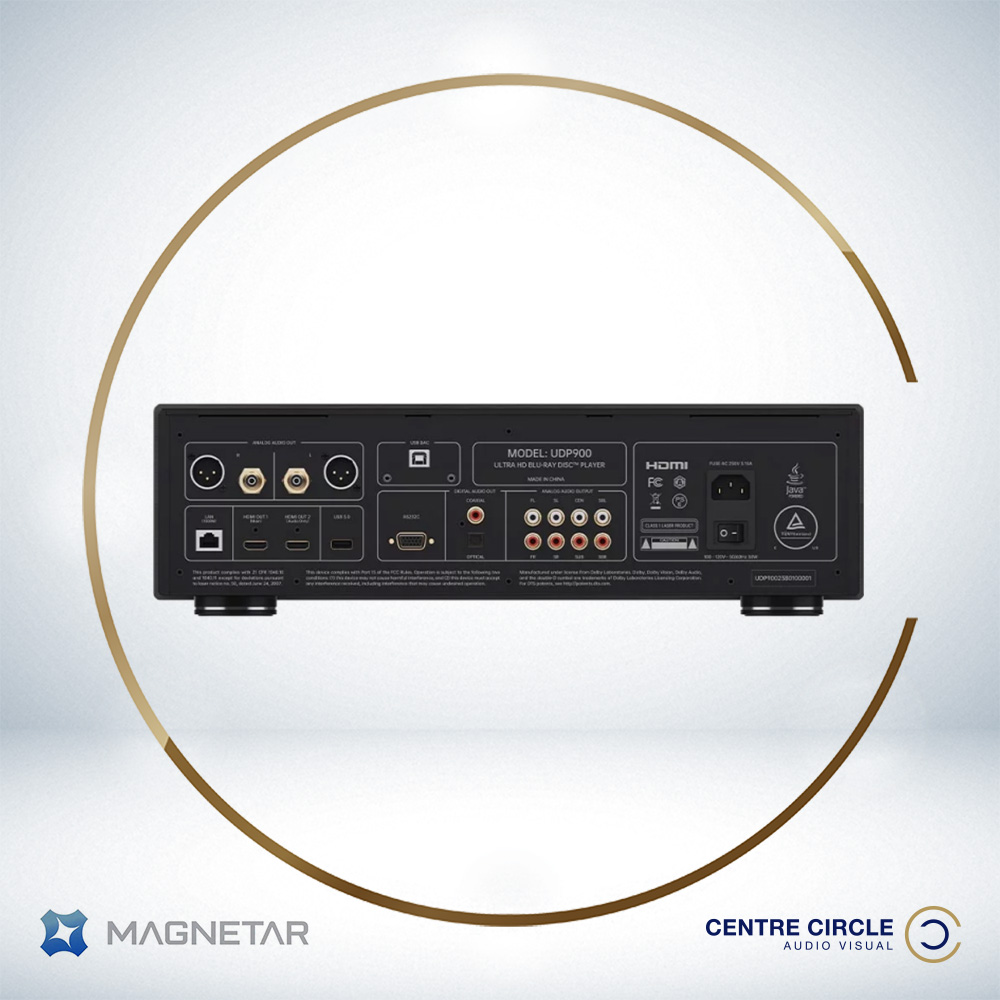

- Analog Audio Output: 7.1chanel RCA, 2-channel RCA and Balanced XLR
- Digital Audio Output: Optical, Coaxial, HDMI
- Support up to 7.1 channel 192kHz PCM, 5.1 Channel DSD
- HDMI Video Output: 4K / 1080P / 1080I / 720P / 576P / 576I / 480P / 480I
Analog audio characteristics
- Frequency range: 20Hz-20kHz (±03dB)
- Signal-to-noise ratio: ≥120dB(2CH RCA); ≥130dB(2CH XLR)
- Distortion plus noise: ≤0005%
- Output amplitude: (RCA) 2. 1±2Vrms. (XLR) 4.2±0.4Vrms
- Dynamic range: ≥120dB(2CH RCA); ≥130dB(2CH XLR)
- Channel resolution: ≥110dB(2CH RCA); ≥140dB(2CH XLR)
General specification
- Power supply: AC 110-120V ~ 50/60Hz / AC 220-240V ~ 50/60Hz
- Power consumption: <40W, Standby<0.5W
- Dimensions: 445 x 321 x 133 mm
- Weight:15.5kg
- Operating Temperature: 5°C~ 35°C （41°F ~ 95°F）
- Operating Humidity: 15% – 75%
Magnetar are makers of high end 4K Blu-ray disc players specifically designed with high end video and audio in mind. Their players feature the latest advanced image decoding and processing technology, with 4K ultra HD and HDR support, including Dolby Vision and HDR10+ providing clear and sharp picture and rich colours.
Magnetar's universal disc players are also fantastic audio players, featuring high end components for hi-res media including DSD64/128, multi-channel DSD64, and 192kHz/24-bit PCM formats and AIFF, ALAC, APE, FLAC and WAV audio file formats.
