OPUS 1
A new dimension of a full-range system by Avantgarde
OPUS 1 is the first Avantgarde system built around a single wide-band horn: a 13.8-inch spherical wave geometry capable of reproducing the entire critical midrange and high-frequency spectrum from 700 to 20,000 Hz, accompanied by a 10″ bass driver. By concentrating the musical core into one horn, we eliminate crossover transitions in the most sensitive bandwidth, resulting in seamless coherence, sharp transient response, and a presentation that feels alive, direct, effortless.
Specifications
- Frequency Range : 35 - 20,000 Hz
- Crossover frequency : 700 Hz
- Recommended Room size : >15 sqm
- Number of ways : 2-way
- Bass reflex layout : large port, rear firing
- Mid-high layout : sperical horn loading
- Material : MDF & Aluminum
- Customizing : matt white & silver anodized, matt black & black anodized
- Footing : POM gliders, adjustable spikes
- Driver size : 10", die cast basket
- Number of drivers : 1
- Driver impedance : 8 Ohm
- Voice coil diameter : 3"
- Membrane : concave paper cone, 2-wave folded surround
- Power handling : 350 Watt
- Driver size : 1" compression driver
- Diaphragm : Ring radiator
- Diaphragm material : polyester
- Efficiency : 103 dB/W/m
- Power output, bass : 250 W @ 8 Ohm
- Power output, mid-high : 10 W AB-mode (1 W Class-A)
- Mid-high crossover : 12 dB/Oct.
- Bass-mid crossover : digital/DSP
- DSP bass adjustment : rear control buttons

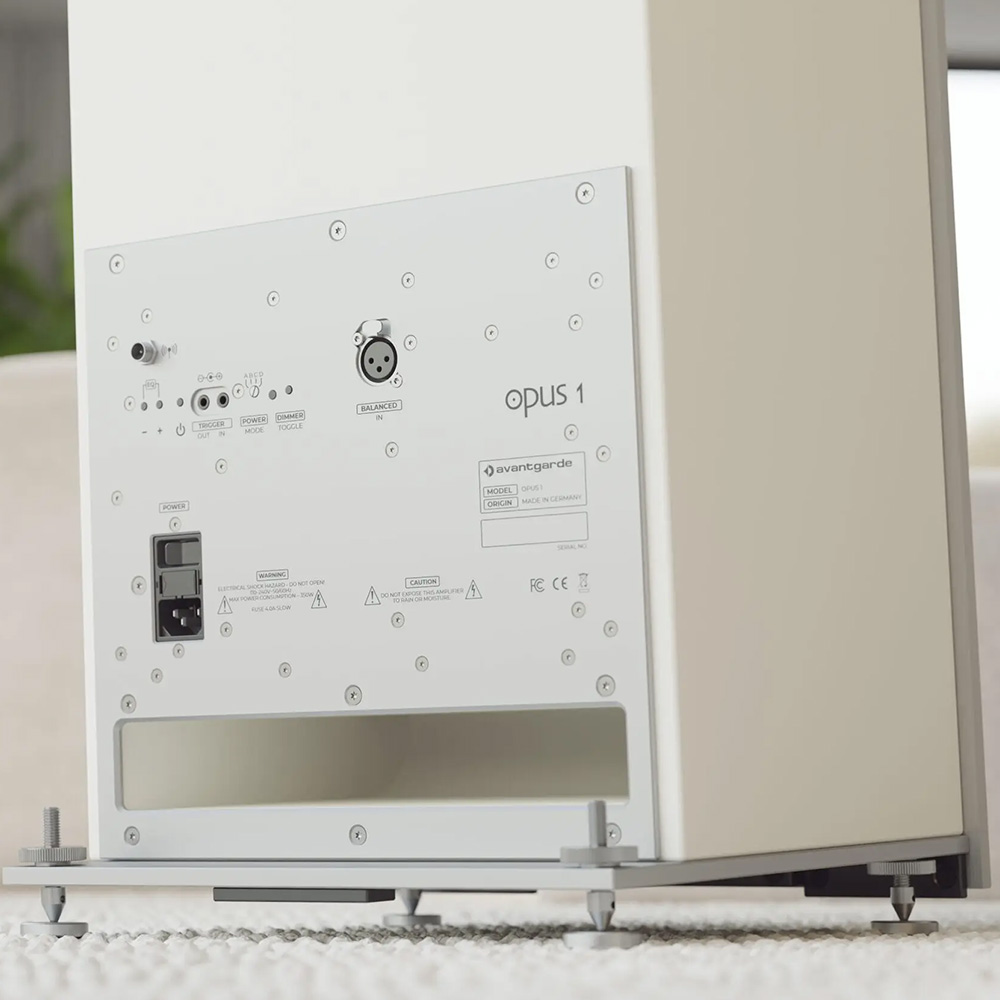

- Line level signal input : 1 x XLR (10 kOhm)
- Trigger input : 12 VDC
- Height : 110 cm (spikes + 2.5 cm)
- Width : 35 cm (32.5 cabinet only)
- Depth : 36 cm
- Standard back tilt (without spikes) : 2.7° (adjustable by spikes)
- Weight : 39 kg
Horn loudspeakers / Made in Germany
Horn loudspeakers are the oldest and most natural physical principle for rendering sound. Their functionality until today has undeniable advantages over other loudspeaker technologies. In this section we invite you to follow us through history and present time, theory and application of this fascinating technology!
